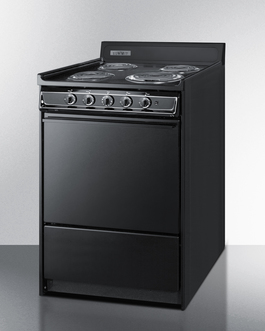

24" Wide Electric Coil Range

24" wide

• Perfectly sized for apartments and other homes with smaller kitchen spaces

Four coil elements

• Surface features one 2100W 8" element and three 1200W 6" elements

Chrome drip pans

• Each element includes a removable chrome pan for easier cleaning

Lower storage compartment

• Keep pots and pans inside the lower compartment for easy storage

Waist-high broiler

• Broiler is located inside the oven, making it easier to use

Recessed oven door

• Smart design limits the depth and protects adjacent cabinets

Porcelain construction

• Solid porcelain range top and oven

Removable oven door and range top

• Black porcelain oven door and top can be removed for easier cleaning

Oven racks

• Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Push-to-turn burner knobs

• Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights

• Control panel includes an 'on' light for the oven and burners for added safety when using the range

Broiler tray included

• Porcelain broiler tray with grease well

Anti-tip bracket

• Install to prevent accidents from tipping oven over

220V electric range

• Cord not included

ADA compliant

• Upfront controls and easy-to-operate knobs offer easier accessibility

Electric Range
Oven Capacity	2.92 cu.ft. (83 L)
Cooktop Surface	Porcelain
Element Type	Coils
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1200.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	1200.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1200.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	2100.0
Burner Controls	Dial
Oven Controls	Dial
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	19.0" (48 cm)
Storage Compartment	Yes
Broiler Location	Inside Oven
Oven Door	White

Exterior
RangeCord4P 4-pronged cord installed on stove	RangeCord3P 3-pronged cord installed on stove

Interior
Canadian Range Conversion Range is modified at factory to meet CSA-C standards	T-Heat Sense Temperature sensor cycles coil element to prevent cookware from exceeding flashpoint temperatures

Overview
Height of Cabinet	40.0" (102 cm)
Width	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	Black
Cabinet	Black
US Electrical Safety	CSA
Voltage/Frequency	220 V AC/60 Hz
Weight	140.0 lbs. (64 kg)
Shipping Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year

• Spec Sheet

• Use and Care Manual

• Installation Guide
